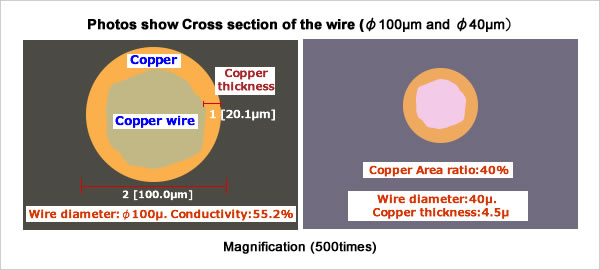

This is a copper coated high tensile steel wire mainly used in electronic components. Available sizes are from 100 micron through 35 micron. The core wire is high tensile piano wire which helps weight reduction and miniaturization of components.
Produnt properties (Actual values)
| Diameter (μm) |
Conductivity (%) |
Breaking load (N) |
Tensile strength (N/mm2) |
Thickness of copper (μm) |
| 100 | 55.2 | 12.5 | 1,592 | 16.6 |
| 36 | 16.4 | 2,131 | 8.5 | |
| 70 | 53.6 | 6.9 | 1,846 | 11.6 |
| 44.5 | 8.0 | 2,141 | 9.3 | |
| 50 | 38.8 | 3.9 | 2,129 | 5.5 |
| 27.8 | 4.5 | 2,436 | 3.7 | |
| 40 | 38.6 | 3.1 | 2,531 | 4.3 |
| 26.8 | 3.6 | 2,911 | 2.9 | |
| 35 | 26.3 | 2.6 | 2,798 | 2.5 |
・3,000m is a standard length on a bobbin.
・Camber is 700xwire diameter.
・For further information, please contact us.
